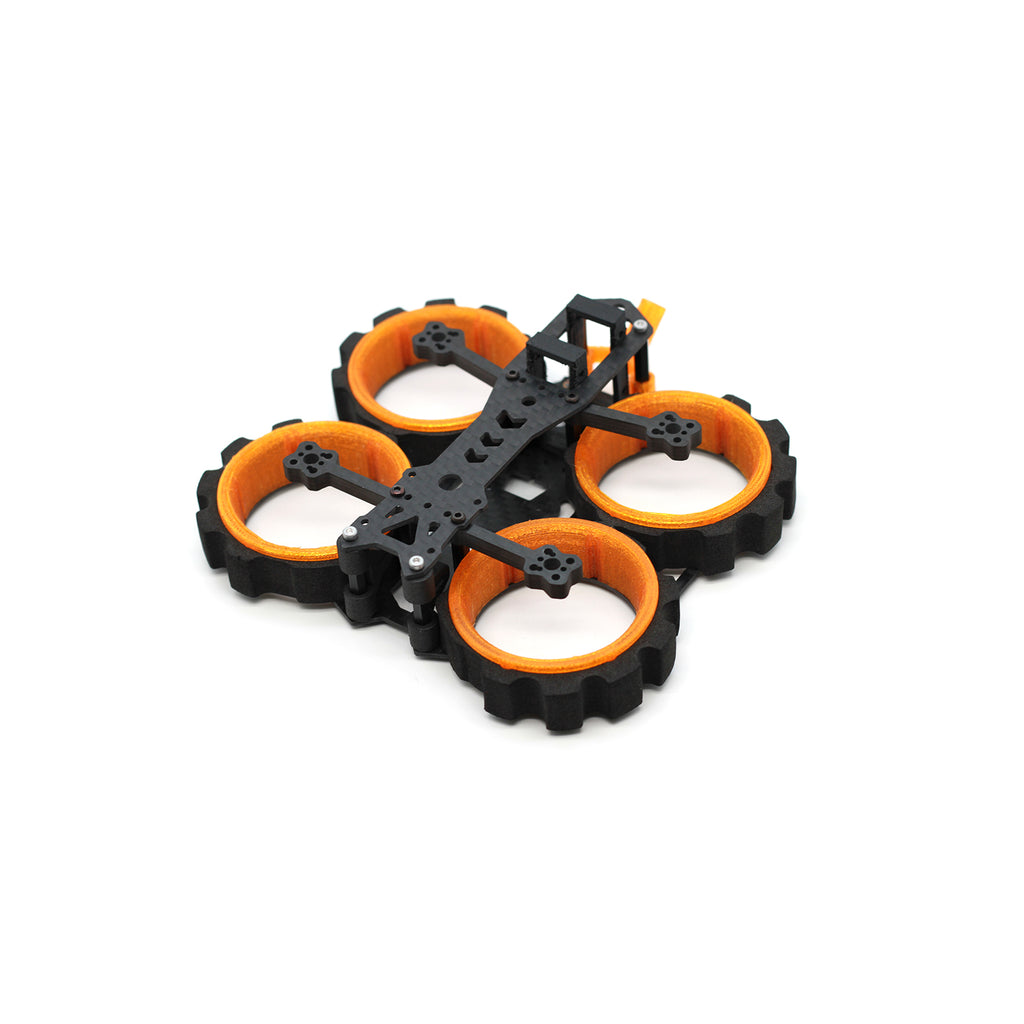

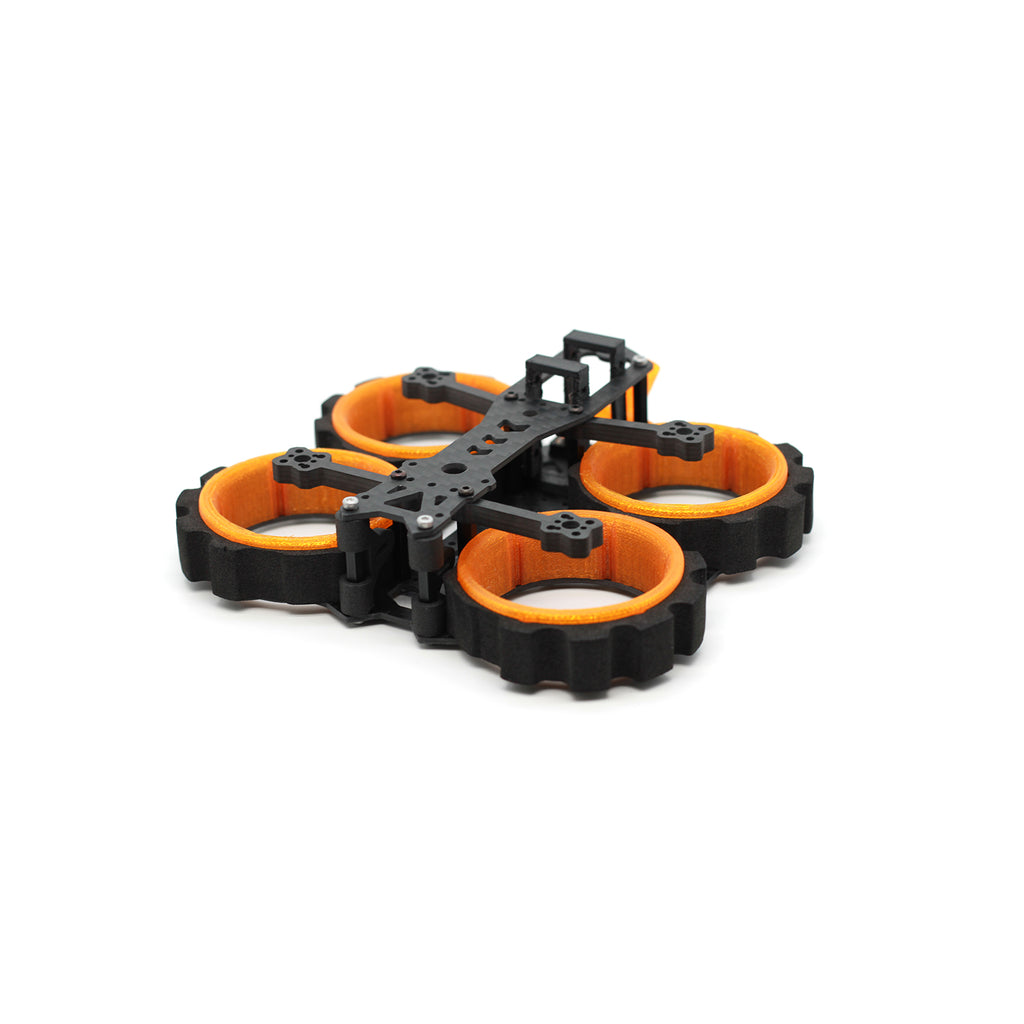

HBFPV DXR40 40mm Props EVA Foamed Bumper Inverted Ducted Pusher HD DVR FPV Drone Frame KIT Supply Caddx Vista Insta360 Go2

Brand: HBFPV
Model: DXR40

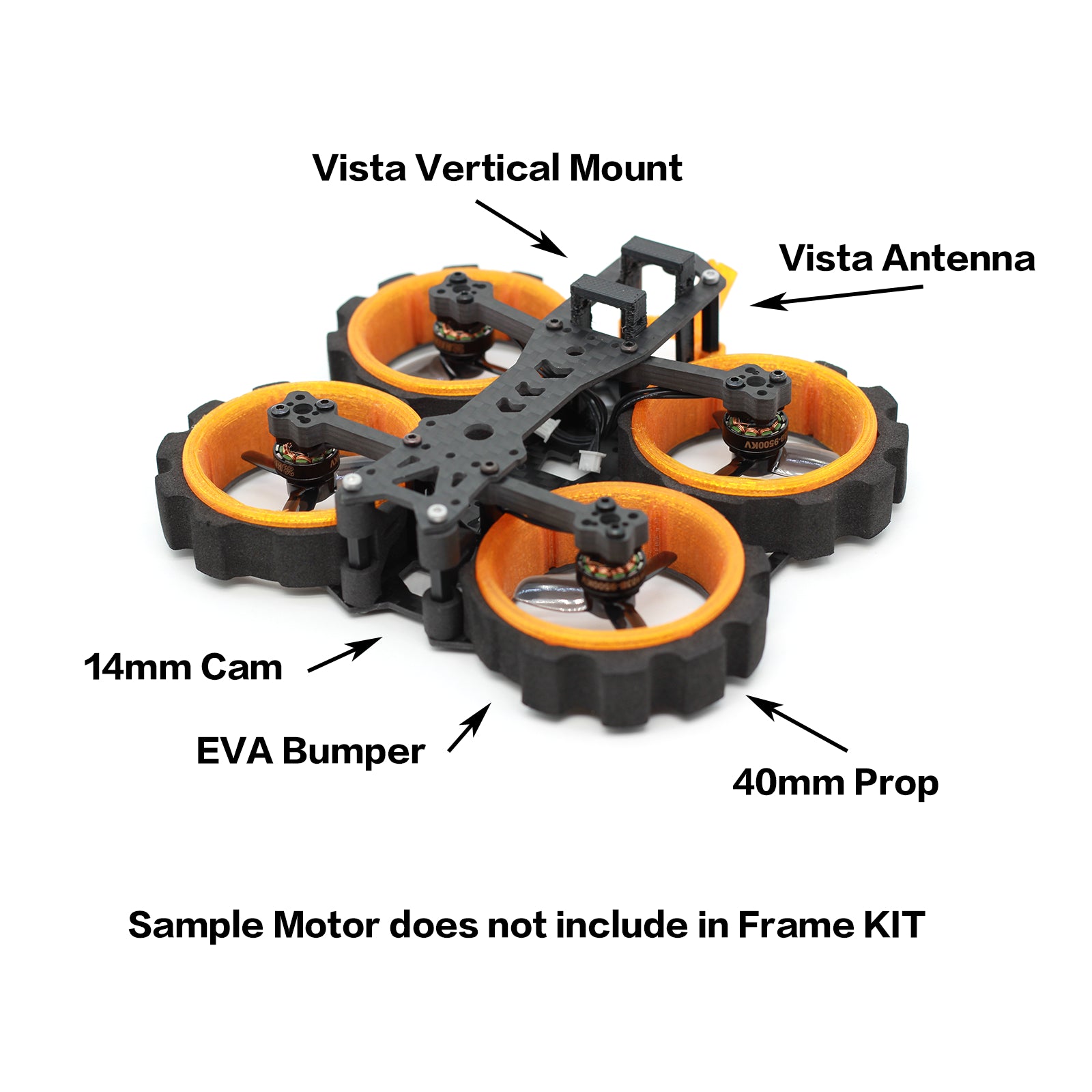

Features:
- Inverted Pusher
- 40mm/1.6inch Props tiny size ducted drone
- TPU95A ducts
- EVA Foamed Bumper
- Support Insta360 GO2
- Support DVR Camera such as Caddx Loris 4K/Runcam Split4 nano 4K
- Support Caddx Vista Polar

Frame KIT Specifications:
Wheelbase: 95mm
CF Thickness: arm(5.0mm), top(1.0mm), bottom(1.5mm)
Camera Mount: suitable for 14mm camera(Caddx Polar)
FC Mounting Holes: 25.5x25.5mm/M2, 20x20/M2, 16x16mm/M2
Analog VTX Mount: 16x16mm/M2
HD VTX Mount: Nylon 20x20mmxM2 (for Caddx Vista)
Motor Mounting Holes: M2xD9mm, M1.4xD6.6mm
Duct: TPU 95A
Duct Protector: EVA

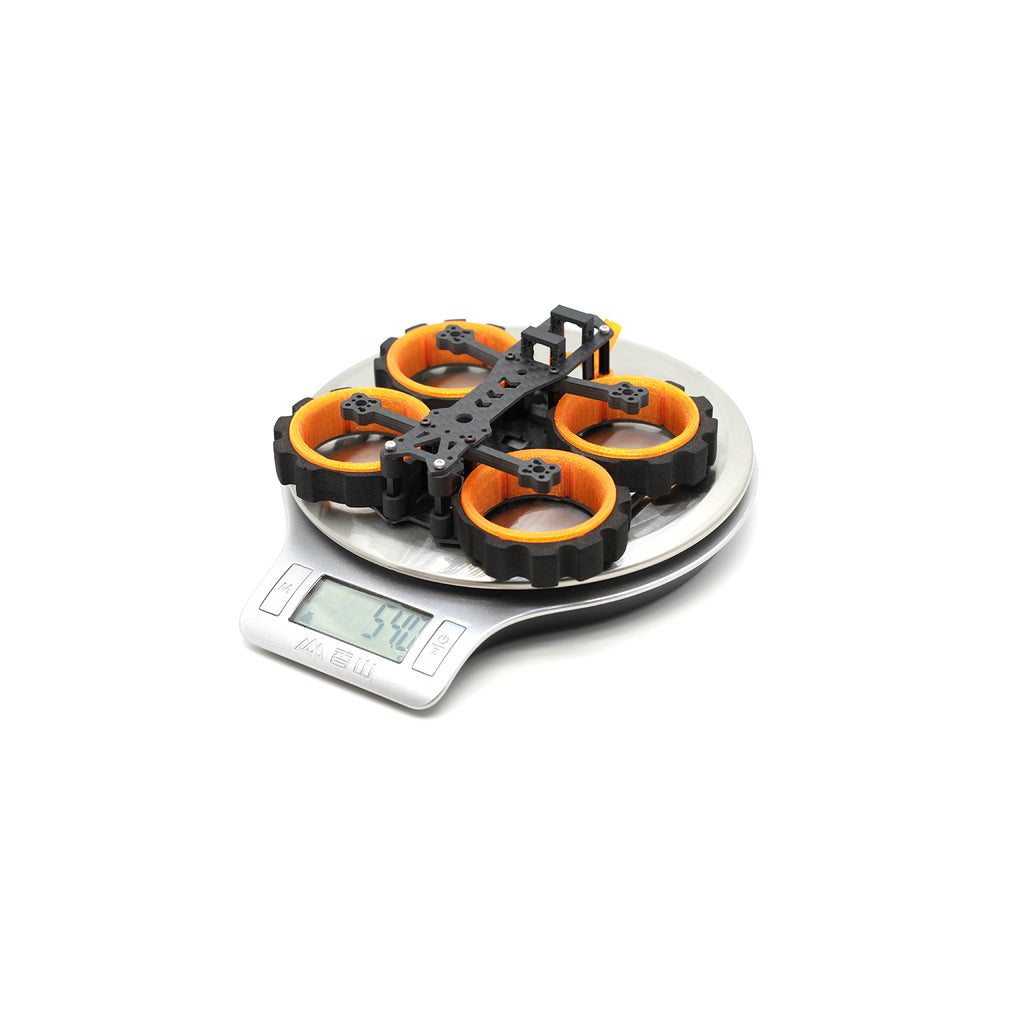

Weight: 52g (include all accessories and printing parts)

Package Lists:
1) DXR40 frame KIT (Frame, Ducts, EVA Protectors, Cam Mounts, etc)
2) FC installation pack(screws, dampers, nuts and etc.)
3) Motor screws pack(m2x4)
4) TPU Parts
